Πρότυπο αποτυπώματος Trijicon RMR

Ποιο red dots θα συνεργάζεται με τη βάση Trijicon; Θα μπορείτε να εγκαταστήσετε το Holosun 507C στην ίδια πλάκα με το Trijicon RMR red dot σκοπευτικό; Καλύπτουμε την πλήρη συμβατότητα του αποτυπώματος σε αυτό το άρθρο.
Τι σημαίνει “αποτύπωμα”; Ο όρος αποτύπωμα αναφέρεται στη δομή των υποδοχών και των οπών βιδών στη βάση της οπτικής συσκευής.
Και τι σημαίνει αν τα αποτυπώματα είναι συμβατά; Κάθε οπτικό σκοπευτικό έχει κάποια βάση για τοποθέτηση. Η βάση αποτελείται από καρφιά σε διάφορες θέσεις και οπές για βίδες που χρησιμοποιούνται για τη στερέωση του σκοπευτικού στη βάση.
Αν οποιαδήποτε δύο σκοπευτικά χρησιμοποιούν την ίδια βάση για τοποθέτηση, λέμε ότι μοιράζονται το ίδιο αποτύπωμα. Σε αυτό το άρθρο δείχνουμε ποια red dots μοιράζονται το ίδιο αποτύπωμα.

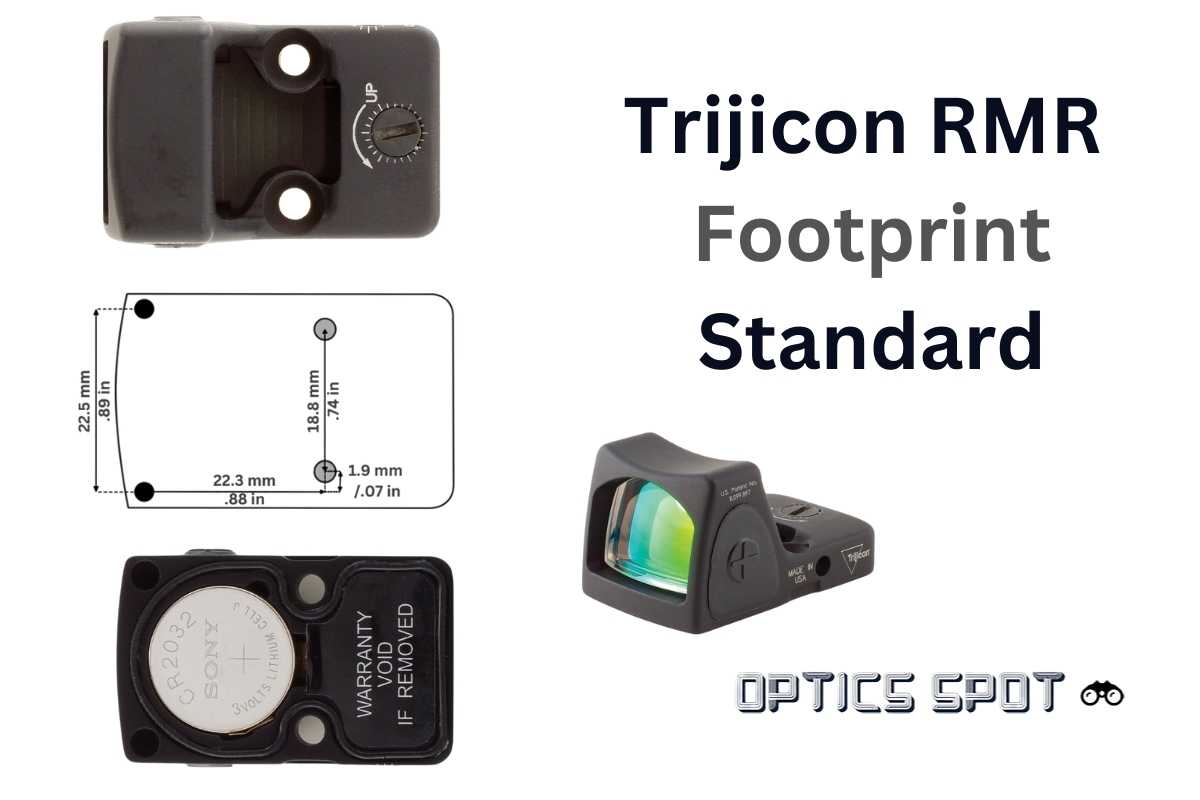

Το αποτύπωμα RMR αποτελείται από δύο υποδοχές μπροστά και δύο οπές για βίδες στο κέντρο της σκοπευτικής συσκευής.
Οι μπροστινές υποδοχές απέχουν 22,5mm / 0.89 ίντσες μεταξύ τους, η καθεμία τοποθετημένη στη γωνία του μπροστινού μέρους της συσκευής. Η θέση αυτών των δύο υποδοχών αντιστοιχεί στη θέση των πείρων που βρίσκονται στην επιφάνεια τοποθέτησης οποιασδήποτε βάσης για αυτό το πρότυπο.
Οι οπές για τις βίδες είναι τοποθετημένες περίπου στο μέσο της οπτικής συσκευής. Αυτές χρησιμεύουν για τη στερέωση της συσκευής στη βάση. Αυτές οι δύο οπές για βίδες απέχουν 18,8mm / 0.74 ίντσες μεταξύ τους.
Οι βίδες που πρέπει να χρησιμοποιηθούν για αυτές τις οπές βίδας περιλαμβάνονται πάντα στο πακέτο με τη συσκευή.
Το RMR είναι ένα από τα πιο κοινά αποτυπώματα στην αγορά.
Παρακάτω μπορείτε να βρείτε την πλήρη λίστα των σκοπευτικά που θα λειτουργήσουν με το αποτύπωμα Trijicon.
Trijicon RMR standard
Vector Optics Frenzy 1x22x26 MOS MRS red dot
Vector Optics Frenzy 1x22x26 MOS red dot
Vector Optics Frenzy-X 1x19x28 GenII
Vector Optics Frenzy-X 1x19x26 MRS GenII Ηλιακή Ενέργεια Πολλαπλή Διόπτρα
Εξαρτάται από τη συσκευή που θέλετε να τοποθετήσετε.
Υπάρχουν πολλές διαφορετικές βάσεις για red dot σκοπευτικά, αλλά τα άλλα πιο κοινά είναι τα εξής:
